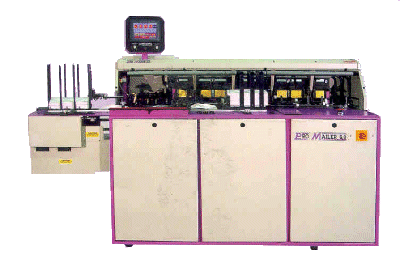

Mailcrafters - Pro Mailer 6.0
High Performance Inserting Machine
Expand your office environment with a smooth running, high performance production inserter that's reliable and easy to use. Inserts 6000 envelopes per hour, automatically collates, stuff, seals and stacks envelopes or passes them through an inline postage meter. The ultimate choice for your office environment.
ProMail 6

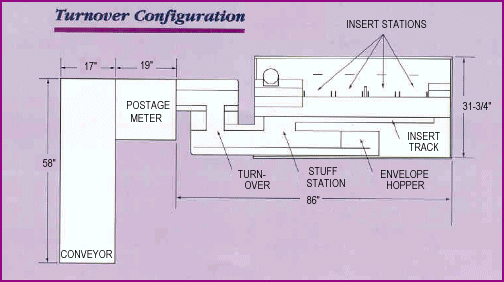

Turnover Configuration

ProMail 6

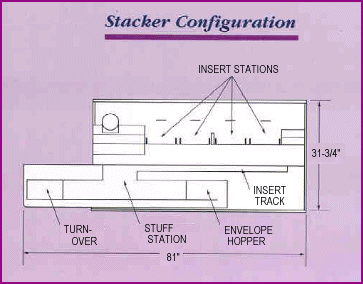

Stacker Configuration

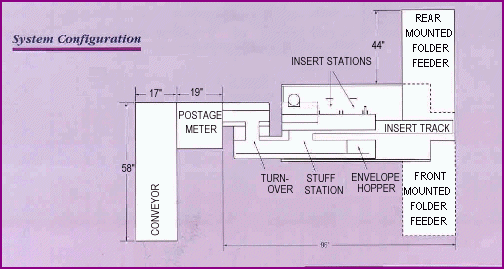

System Configuration

SPECIFICATIONS
Standard Configurations
  • Insert stations available: 2 or 4
  • Insert size: 6" x 9" - 1/4" total thickness overall into the envelope. Maximum thickness at each station - 1/8"
  • Envelope size: 6-1/2" x 9-1/2" maximum
                             3-1/2" x 5-1/2" minimum
  • Envelope flap depth: 2-3/8" maximum
  • Power Requirements:
                115 VAC at 15 amperes (Stacker) 220 VAC at 25 amperes (MTO)
  • B.T.U. Ratings:
                2405 BTU/hr.
  • Machine Dimensions:
                Stacker Configuration: 81" L x 31-3/4" D - Weight: 795 lbs.
                Turnover Configuration: 86" L x 31-3/4" D - Weight: 925 lbs.
Optional
  • System Interface (RS232)
  • Open Feed Station
  • Batch Counting
  • Friction Feeders
  • Density Checker
  • Insert Track Detector
  • Envelope Track Detector
  • Inline Inkjet
